• 380TV lines picture display

• Low radiation, safe and healthy

• Suitable for monitoring children, elders and widely used for theft prevention, afterhours surveillance, home security etc.

BUY WITH CONFIDENCE


Transmission

• Electric power:  DC 8V

• Output power:  50mW-200mW

• Video input: 1.5VP-P(MAX)

• Power consumption current:  150mA

• Audio input:  2VP-P(Max.)

• Effective range (no obstacles): 50m~150m

• Operating Temperature:  -20?~60?

• Operating Humidity:  85%RH

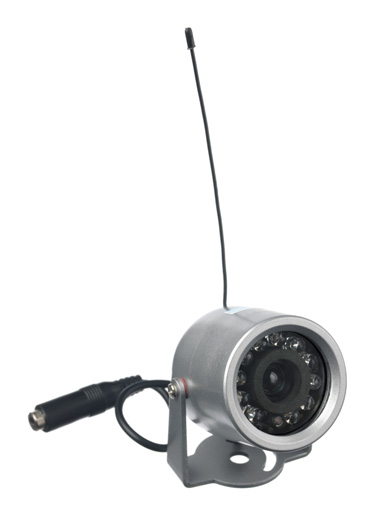

CMOS Nightvision Camera (12x IR LED)

• Image Sensor: 1/3 inch CMOS

• CMOS Total Pixels:  628X582

• Sync System:  Internal

• Minimum Illumination: 0Lux @F1.2 (IR ON)

• Resolution: 380 TV Line

• Lens focus: 6.0mm

• Effective picture element: PAL (628x582)

• NTSC (510x492)

• Scan frequency:  PAL/CCIR: 50Hz   NTSC/EIA: 60Hz

• Output standard: CCIR/EIA (PAL/NTSC)

• White Balance Mode: AWB (Zero color rolling)

• Gain Control: AGC

• S/N Ratio:  48dB(Min)/60dB(TYP)(AGC OFF)

• Electronic Shutter:  1/50~1/10,000sec

• Gamma Correction: 0.45

• Illumination Distance: 7-10 meters

This Camera has High Quality Color CMOS Sensor for Crisp Clear Images. Very small and can be placed anywhere and easily Viewable on your television or computer monitor. This Camera Is Weatherproof With Sturdy Alloyed Shell For Outdoor Use.

It has Built-in Infra Red LED (12X): For Color Pictures During The Day and Black and White At Night. Long Operation Range of Up To About 300 Ft Line Of Sight or 98 Ft through Obstruction (Walls/Ceillings). Universal Swivel Base Included To Make a Nice System For Wall Mounting.

UPC: 859456002447
