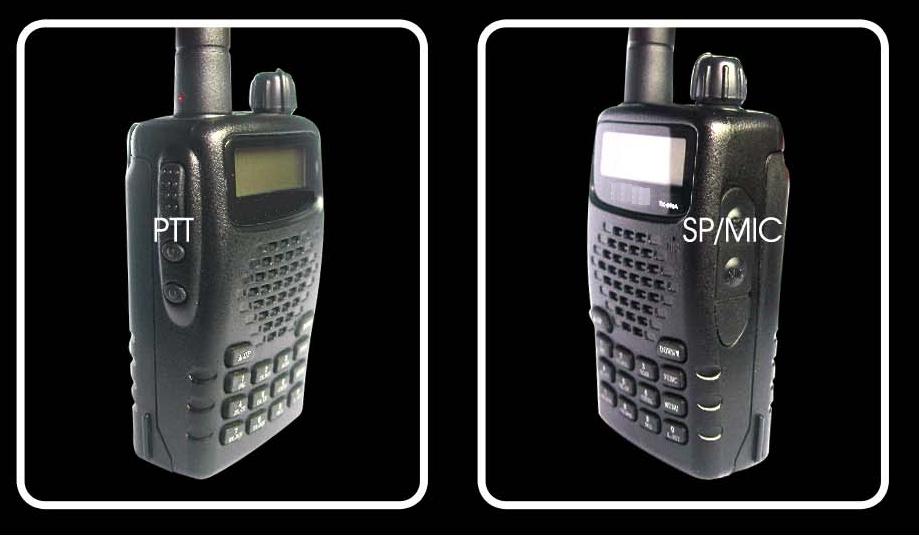

Programmable VHF Portable Radio/Walkie-Talkie

Features:

• Squelch grade setting

• LCD display / keypad input

• Automatic power save

• Low battery warning

• Low power alarm

• Transmit time limiter

• Channel scanning

• Busy channel lockout

• PC programmable

• Name memory

• Name/frequency mode switch

• Name or number of self-programmable

BUY WITH CONFIDENCE


Specifications:

Size: 3.62 x 2.09 x 1.18 inches

RF Power Output: 4 / 5W

Number of Channels: 199

Menu Mode: 50 CTCSS, 107 CDCSS

VOX: 16 optional

Call Tones:16 optional

Compatability: 5/6.25/10/12.5/25 KHz

Maximum Deviation: ≤ ±5.0KHz

Spurious Emission: ≤65dB Below Carrier

Modulation Distortion: ≤ 5 (300-3000Hz)

FM Noise: ≤ -45dB

Receiver: (Measurements made per TIA/EIA-603) Circuit Type Double-conversion Superheterodyne

IFS: 38.850MHz & 450KHz

Sensitivity (12db SINAD), 0.2μV

Squelch Selectivity: 0.15μV

Adjacent Channel Selectivity: ≥ 65dB

Intermodulation: ≥65dB

Spurious Rejection: ≥ 60dB

Image Rejection: ≥65dB

FM Ham & Noise: ≤ -45dB

Specific Modulation Type: 16KOF3E

Operating Bandwidth: ≤±7KHz

AF Output: 0.5W at 4 Ohms

Audio Distortion: ≤ 5

Description:


These Radios come with lithium-ion battery and are easily programmed by inputting the desired frequency via keypad. There is no need for computer or cables for programming.

UPC: 859456002386
SKU: ATL2WayVHF
